For VORON 2.4 Motion Parts Set Corexy motion parts Gates GT2 LL-2GT RF Open Belt 2GT 16T 20T pulley 188mm belt Shaft bearings

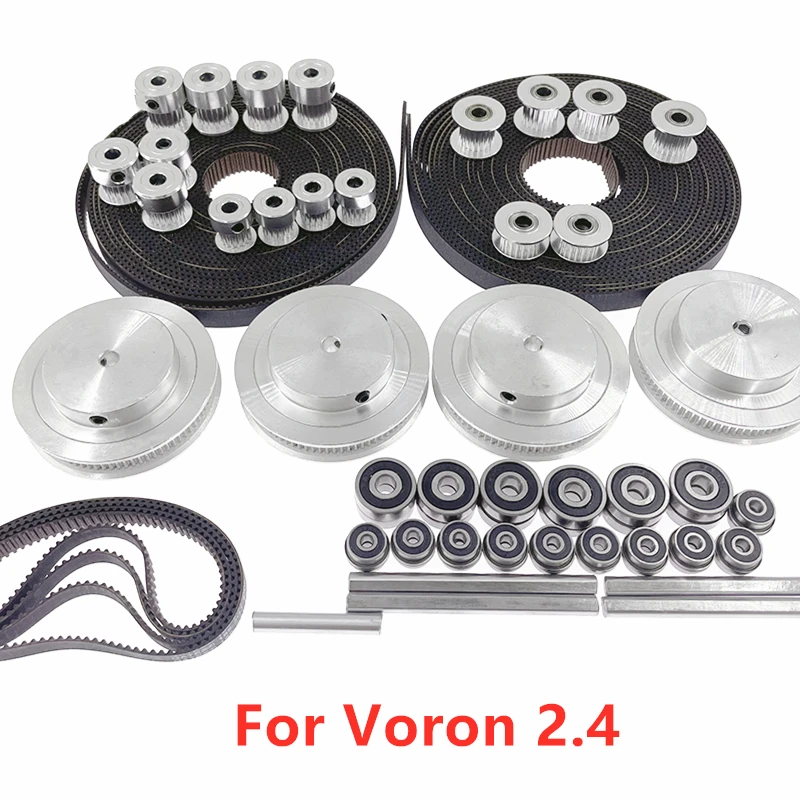

NEW VORON 2.4  MOTION Parts Set Include

Timing belt:(The different parts)

250mm version:
Gates LL-2GT-W6 belt--3.5 meters

Gates LL-2GT-W9 belt--4.0 meters

300mm version:
Gates LL-2GT-W6 belt--4 Meters

Gates LL-2GT-W9 belt--4.5Meters

350mm version:
Gates LL-2GT-W6 belt--4.5Meters

Gates LL-2GT-W9 belt--5Meters

The same parts:

Gates 2GT-W6-188 loop belt--4pcs

GT2 20T (6mm wide)(5mm bore) ---3pcs
GT2 16T (6mm wide)Pulley (5mm bore) --- 4pcs
GT2 20T (9mm wide) Pulley (5mm bore) --- 4pcs

GT2 20T (6mm wide) Toothed Idler (5mm bore) --- 2pcs

GT2 20T (9mm wide) Toothed Idler (5mm bore) --- 4pcs

GT2 80T (6mm wide) Pulley (5mm bore) --- 4pcs

F695-2RS Bearing --- 20pcs
625-2RS Bearing ---  12pcs
5x60mm Shaft -Grind Flat --- 4pcs
5x30mm round Shaft --------------- 1pc

Thanks to Voron Design for designing and improving such a great and outstanding 3D printer,

The kit is used in the motion part of VORON 2.4 3D printer (2021/10/21)

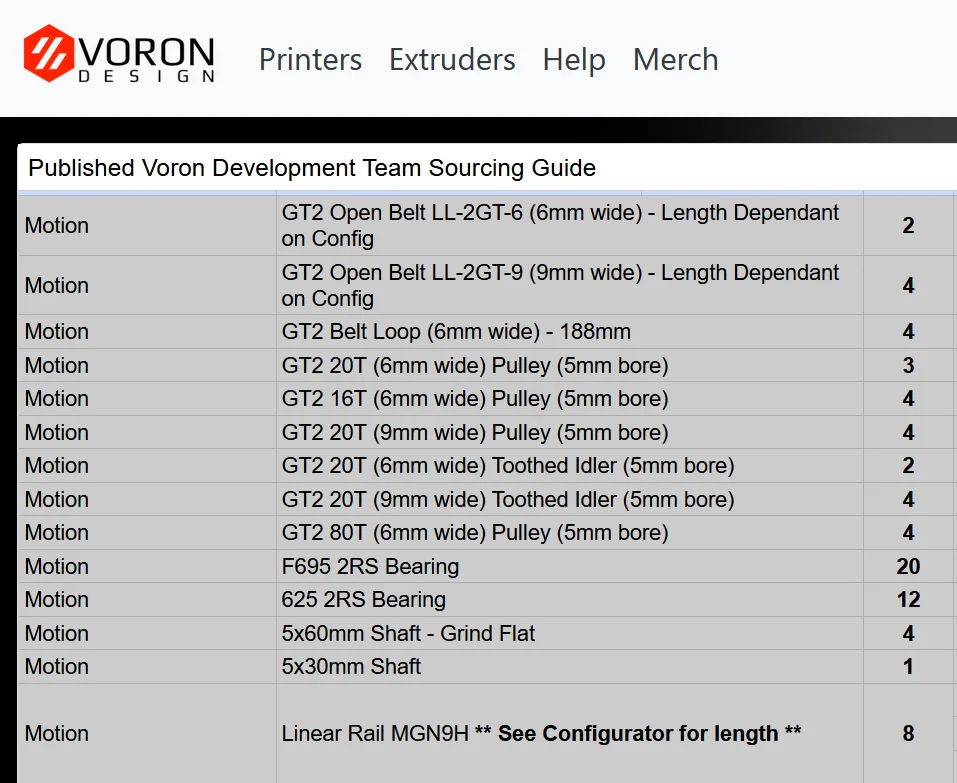

All models are from the official website BOM list, if you have a better summary, please contact us.

About timing belts: All Gates timing belts are purchased from authorized distributors in China and are 100% genuine

About D-shaft: Cut with 5mm stainless steel shaft, the length is ± 0.2mm

About the bearing: rubber cover, ABEC-5 level bearing
